Boiler Scale Prevention Water Softening System Single Tank Processing 1000L/H

• This single tank single valve water softening system is produced by the factory in Tai'an City, Shandong Province, China, with independent research and development, assembly and testing capabilities, and in accordance with ISO9001 quality management system. All systems are subjected to strict pressure testing, water quality testing and operation simulation to ensure stable and reliable performance.

• The system uses ion exchange technology to remove calcium and magnesium ions from the water, effectively reducing water hardness and preventing system scaling and corrosion.

Comparison

• Compared with the dual-tank system, the single-tank system saves space and operating costs.
• It has the advantages of intelligent operation and maintenance, strong durability, and is suitable for small and medium flow scenarios.
• Single-tank systems are simpler to maintain and have a resin life of 5 to 10 years.
• Easier to operate

Factory Production Line Customization

• The factory is equipped with several automated production lines, which can customize the system configuration according to different customer's parameters, including flow rate setting, resin loading, and control program logic.
• Core components such as control valves and pressure vessels are selected from domestic and international suppliers (NSF certified and ISO9001 certified) to ensure the durability and safety of the whole system in long-term operation.

Structure and Working Principle

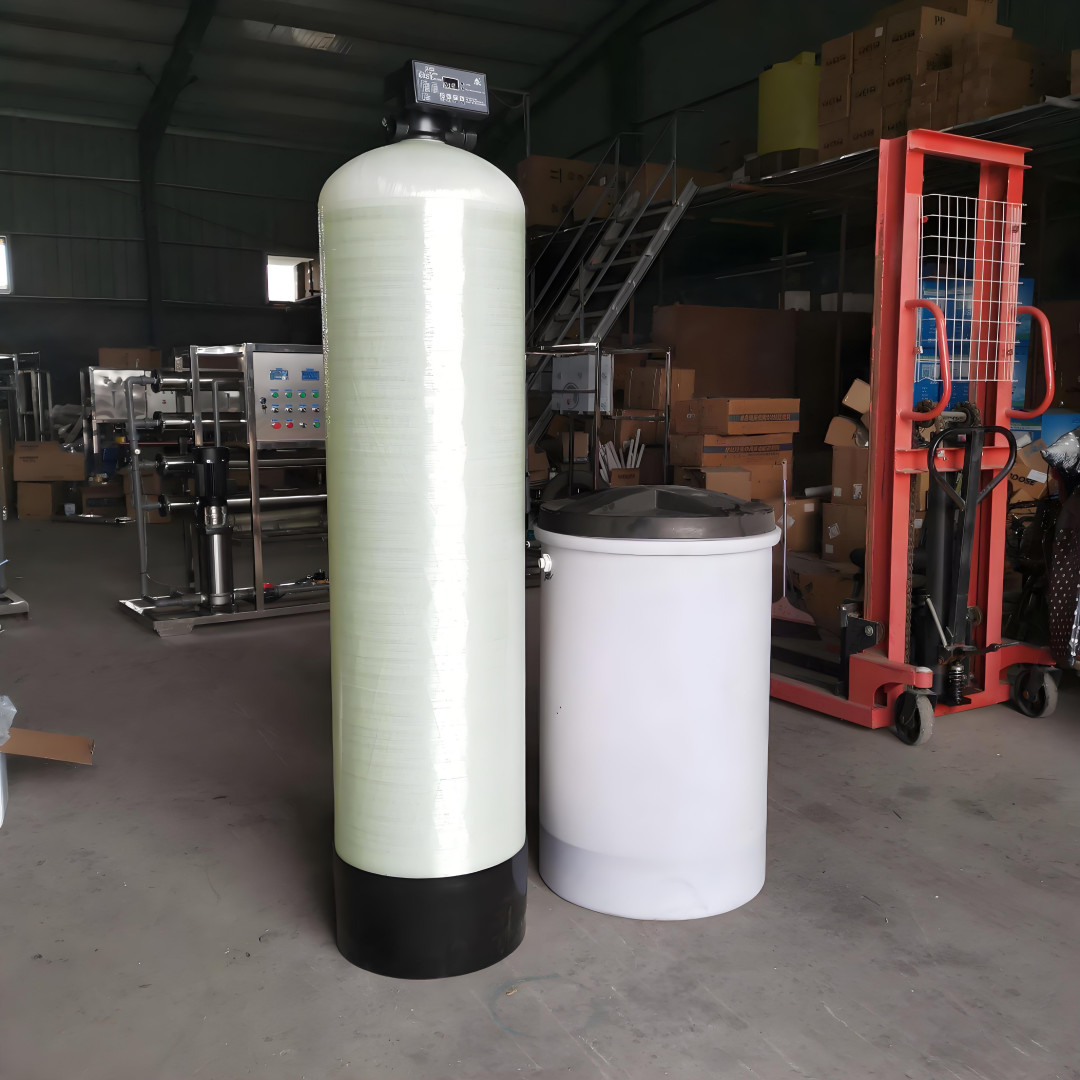

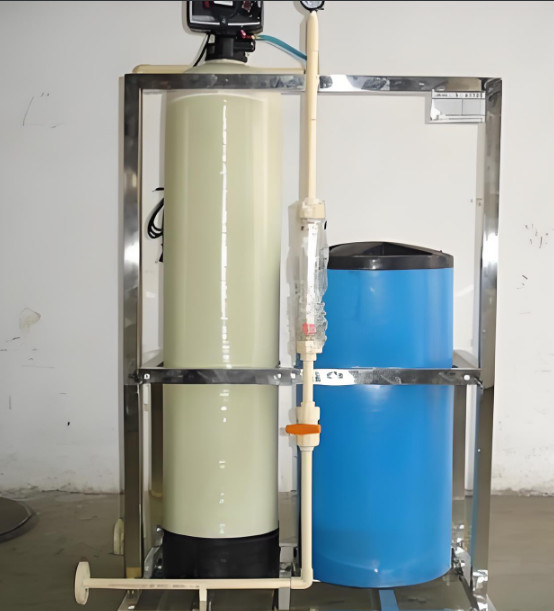

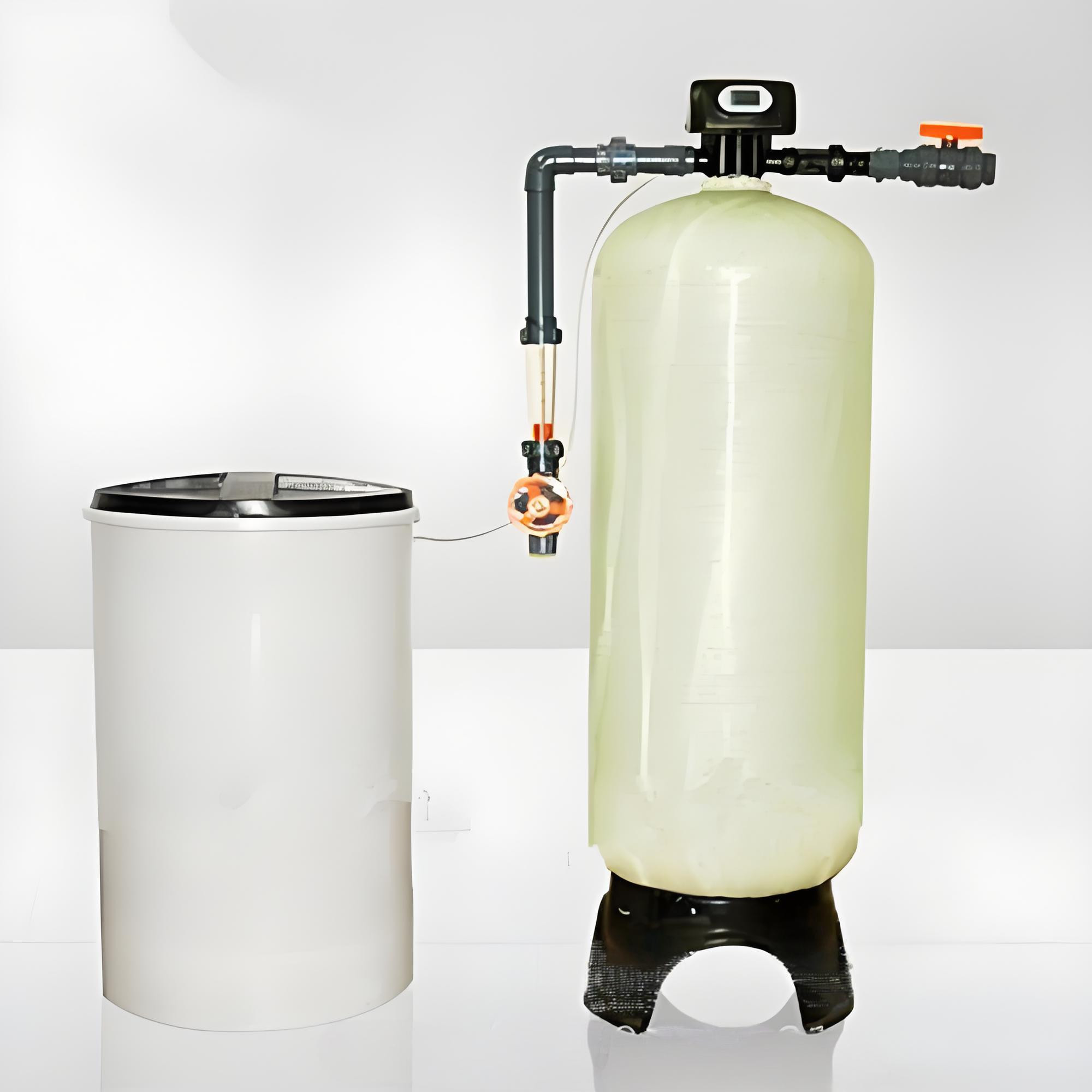

• The core structure of the system consists of a resin tank, a multi-function control valve, a salt tank and supporting piping.
• The resin tank is usually made of fiberglass reinforced plastic (FRP) or polyethylene (PE).
• It is filled with strong acidic cation exchange resin (e.g., type 001×7), which is responsible for adsorbing hardness ions in water.
• The control valves are mostly of full-automatic design, with integrated flow meter, timer and other modules, which can intelligently control the complete workflow of operation, backwashing, salt suction and slow washing, and salt tank water filling. When the resin is saturated with adsorption, the system automatically starts the regeneration program, rinsing the resin through sodium chloride solution in the salt tank to restore its exchange capacity and discharging the waste water at the same time.

Performance

• In terms of performance, single tank, single valve systems can typically handle flow rates of 0.5-5 m³/h.
• Operating pressure is recommended to be maintained between 0.2-0.6 MPa to ensure stability.

Outstanding Advantages

• Space efficiency: Nearly 50% less floor space than a two-tank system, especially suitable for installations where space is limited.
• Operation economy: Adopting flow or time-triggered regeneration mode, salt consumption can be accurately calculated to avoid waste (salt consumption per ton of soft water is about 80-120g);
• Intelligent operation and maintenance: Modern models are equipped with LCD display and fault self-test function, and some of them support remote monitoring;
• Material durability: the tank body adopts winding molding process, with compressive strength of 0.8MPa or more, and the valve body uses engineering plastics, with corrosion-resistant life of more than 10 years.

The daily maintenance requirement of single-tank single-valve water softening system is low, users only need to check the status of the resin, replenish the brine and clean the control valve regularly. The life of the resin is usually 5 to 10 years, depending on the water quality and frequency of use. As long as regular inspections and cleaning are maintained, the system can operate stably for many years. The system's user interface is simple and easy to understand, allowing the user to perform basic management and maintenance, ensuring the continuity of the soft water supply and the efficiency of the system.
